PHOTOPRIME

New double charging technology enables to make 3 independent shots per sec which can remoue unwanted fine hair more effectively over existing, conuentional products in the market place.

Technical Specification

SOURCE	Xenon Flash Lamp
WAVELENGTH	450 ~ 1,200nm
STANDDARD FILTER	Non-Cooling HP:560(m), 590(m), 640(W)nm Cooling HP : 640nm(Quartz)
FLUENCE	2~80J/cm2(1puse basis:up to 45J/cm2)
SPOT SIZE	8x34(Quartz), 10x38(M),12x46(W)mm
PULSE TYPE	Single, Double, Triple, Multiple
PULSE DURATION	5~300ms
PULSE DELAY	5~99ms(1~3 pulse) / 5~780ms(Multiple pulse)
REPETITION RATE	Up to 3 Hz(3 shop per sec.)
COOLNING HP SYSTEM	Peltier Cooling System
CONTROL	10.4“ LCD Touch Screen
ELECTRICAL REQUIREMENTS	AC 220V+-10% ~50Hz/60Hz, 10A
LAMP LIFETIME	50,000 shot guaranteed per handpiece
WARRANTY	1Year
CONSUMPTION POWER	1,500 Watt
DIMENTIONS	502 x 565 x 1046
WEIGHT	46kg

PHOTO SPRAY

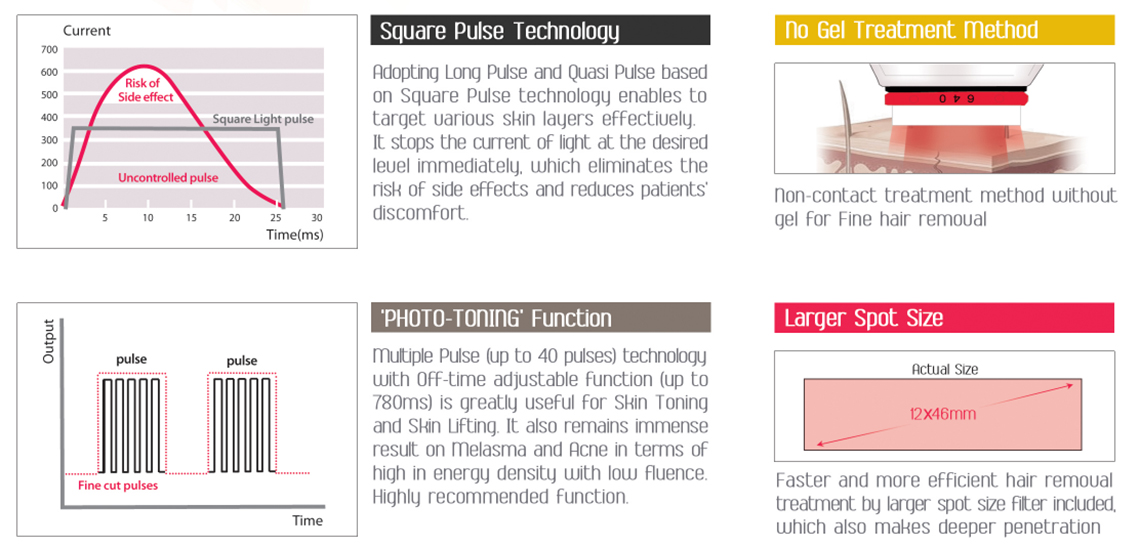

As we design and build to satisfy you, we’ve applied advanced technology, programs, and services you need to make the most of your investment We’ve achieved creating an outstanding Intense Pulsed Light system, called ‘ PHOTOPRIME’ performing exceptional efficacy by utilizing latest technology with proven clinical applications. It ha Dual Handpiece and Dual Power. which dramatically increases versatility and durability of the use. High peak pulse width and shorten the shot repetition rate have created new function. called ‘Photo Spray’. which shows great result especially on fine hair removal.

What is ‘Photo Spray’?

Photo Spray function has been created upon the request to produce an IPL with more efficient performance on fine hair removal, It uses controllable high peak pulses with fast shot speed(3 shots per sec). Thank to the double switching technology enabled by Dual Power system, Photo Spray is designed to treat on unwanted fine hair quite quickly and effortlessly It is used by non-contact treatment method and doesn’t require gel on skin Using wider spot size(5.52cm2) filter and non-contact treatment method will boost the treatment speeds enormously, which will bring many positiue benefits to both of practitioner and patient

PHOTOPRIME Highlights

SPECIAL FEATURES

Dual Handpiece. Dual usability

One standard handpiece & One Contact Cooling handpiece attached and 100,000 shots guaranteed (50,000 per handpiece)

Dual Power System

Newly developed ‘Twin Power supply’ reduces charging speed, resulting fast shot repetition rate and increases durability due to its double power system

Powerful but sophisticated Filter selection

		Standard HP	Cooling HP
Filter		Changeable	Fixed
Standard Package		Select 2 sizes	Select 1 size
Available Filter Size	8x34mm(Quartz)	N/A	560, 640, 700nm
	10x38mm(Middle)	450, 530, 560, 590, 640, 700nm	N/A
	12x46mm(Wide)	640nm	N/A

12 levels of Skin Color Selection

more refined Skin Color selection allows more precise treatment
